Case Study: Solving Structural Failure in Monorail Friction Blocks

Background: The Critical Challenge

A monorail crane operator was facing severe equipment safety hazards. The friction blocks previously in use exhibited extreme brittleness under actual working conditions, leading to complete structural fragmentation (shattering) during high-speed operation or emergency braking.

*Consequences: This led to brake failure and costly production downtime. Furthermore, debris from the shattered blocks frequently became lodged in the rail system, causing secondary mechanical damage to surrounding components.

In-Depth Diagnosis

Through microscopic structural analysis of the failed components, our technical team identified that the original formulation lacked sufficient interfacial bonding strength when subjected to high-frequency shear stress and instantaneous thermal shock. This deficiency allowed fatigue cracks to propagate rapidly, ultimately resulting in catastrophic material failure.

Our Solution

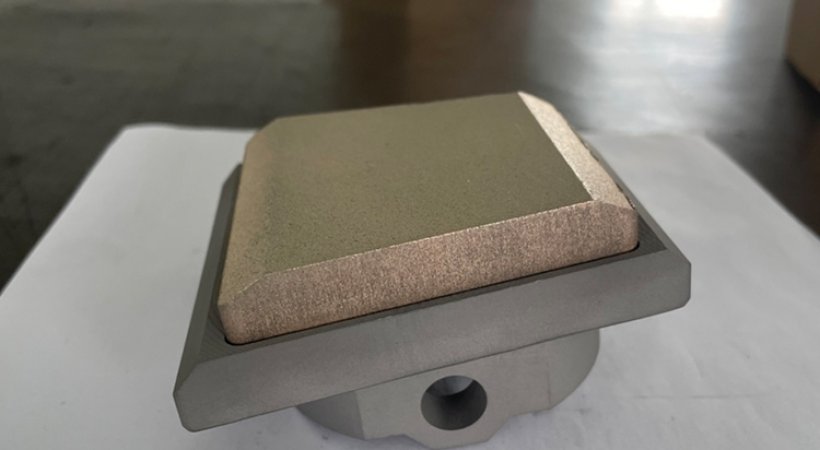

Engineered specifically for the heavy-duty, high-frequency braking cycles characteristic of monorail cranes, we re-engineered the friction material formulation:

  *Reinforced Toughening Formula: We introduced a high-temperature resistant matrix that significantly enhances impact toughness and structural integrity, fundamentally eliminating the "shattering" issue.

 *Thermal Stability Optimization: By refining the resin curing process, we ensured that the friction coefficient remains stable even under the extreme temperatures generated by continuous braking, with zero thermal fade.

The Results

Following extensive on-site batch testing by the client, our new-generation friction blocks achieved the following performance breakthroughs:

*Zero Fragmentation, No Chipping: Even under extreme conditions, the blocks maintained full structural integrity, completely eliminating the risk of shattering.

*Intrinsic Safety (Spark-Free): A specialized metallic friction-reducing formula ensures no sparks are generated during braking, drastically improving safety in flammable and explosive (Ex) environments.

*Consistent Long-Term Performance: The friction coefficient remained locked within the design parameters, providing smooth braking and effectively extending the service life of the monorail tracks.

Case Study: Solving Structural Failure in Monorail Friction Blocks

1. The Problem: Structural Fragmentation

·         Failure: Blocks exhibited high brittleness, shattering during high-speed or emergency braking.

·         Root Cause: Insufficient interfacial bonding strength leading to rapid fatigue crack propagation under thermal shock.

2. Our Technical Solution

·         Reinforced Matrix: Introduced high-temp resistant matrix to enhance impact toughness and prevent shattering.

·         Thermal Optimization: Refined resin curing to ensure a stable friction coefficient with zero thermal fade.

3. Proven Results

·         Zero Chipping: 100% structural integrity under extreme loads.

·         Spark-Free: Specialized non-sparking formula for explosive (Ex) environments.

·         Rail Protection: Consistent friction levels that extend track service life.
